svapy v0.1

Jun. 14, 2025

This project is a framework for Property-Based testing of hardware designs.

Property Based Testing

In simple words, property-based testing is a kind of testing in which the user sets a number of properties for the system, and the computer generates test cases by itself.

Unlike formal verification we don’t try all variants, which can take a lot of time, and we don’t shift the responsibility for creating tests to a human (he will either forget to check the extreme case , or he will think about the coverage points and implement them by hand, which we would like to avoid).

Since this framework uses Hypothesis as a generator, here is an example of its use in python:

from hypothesis import given, strategies as st

@given(st.lists(st.integers() | st.floats()))
def test_sort_correct(lst):
    # lst is a random list of numbers
    assert my_sort(lst) == sorted(lst)

test_sort_correct()

This is a basic example from the documentation, here we test our own implementation of sorting on int and float values.

You can read more about generating feedforward values here.

How is PBT better than randomization?

svapy

So while this is an early prototype I will use poetry to run…

If you execute this command in the root of the decloned project:

poetry run python main.py counter ./example/counter.v

Then we can find 2 files in the ./gen directory:

Let’s talk about the first one, it contains a description-based testbench generation function on the input sequences:

def drive_counter(clk_seq, rst_n_seq, count_seq):
...

And here is the module from which everything was generated:

module counter (
    input wire clk,
    input wire rst_n,
    output reg [7:0] count
);
    initial begin
        count = 0;
    end
    always_ff @(posedge clk or negedge rst_n) begin
        if (!rst_n) count <= 0;
        else count <= count + 1;
    end
endmodule

In addition to the input signals, the function accepts the expected values of the output signals. This is how you can use this function:

from gen.counter_interface import drive_counter

clk_seq = [0, 1, 0, 1]
rst_n_seq = [0, 1, 1, 1]
count_seq = [0, 1, 1, 2]

# Call the drive function
drive_counter(clk_seq, rst_n_seq, count_seq)

Such a call will create the next testbench:

// Auto-generated testbench for counter on 2025-06-15T00:47:04.259455
`timescale 1ns/1ps
module counter_tb;
    logic clk;
    logic rst_n;
    logic [7:0] count;
    integer cycle;  // Test cycle counter

    // Instantiate DUT
    counter dut (.clk(clk), .rst_n(rst_n), .count(count));

    // VCD Dumping
    initial begin
        $dumpfile("gen/dump/counter_tb_20.vcd");
        $dumpvars(0, counter_tb);
    end

    initial begin
        cycle = 0;  // Initialize counter
        clk = 1'b0;
        rst_n = 1'b0;
        if (count !== 8'd0) begin
            $error("Cycle %0d: count: expected=%0d, actual=%0d", cycle, 8'd0, count);
        end
        #1;  // Wait for signals to propagate
        cycle = cycle + 1;  // Next test cycle
        clk = 1'b1;
        rst_n = 1'b1;
        if (count !== 8'd1) begin
            $error("Cycle %0d: count: expected=%0d, actual=%0d", cycle, 8'd1, count);
        end
        #1;  // Wait for signals to propagate
        cycle = cycle + 1;  // Next test cycle
        clk = 1'b0;
        rst_n = 1'b1;
        if (count !== 8'd1) begin
            $error("Cycle %0d: count: expected=%0d, actual=%0d", cycle, 8'd1, count);
        end
        #1;  // Wait for signals to propagate
        cycle = cycle + 1;  // Next test cycle
        clk = 1'b1;
        rst_n = 1'b1;
        if (count !== 8'd2) begin
            $error("Cycle %0d: count: expected=%0d, actual=%0d", cycle, 8'd2, count);
        end
        #1;  // Wait for signals to propagate
        cycle = cycle + 1;  // Next test cycle
        $finish;
    end
endmodule

Now it looks a bit sketchy, but that will change in the future….

In this particular case, we set the input and output values ourselves, but how do we set them automatically?

Generation of input values

The idea was to give the user a convenient format for describing the input data, so let’s look at the generated run_counter.py file:

# Auto-generated Hypothesis test for module counter
import os
import pytest
import hypothesis.strategies as st
from hypothesis import given, settings, HealthCheck
from counter_interface import drive_counter

# Hypothesis configuration
@settings(
    max_examples=20,
    deadline=None,
    suppress_health_check=[HealthCheck.too_slow, HealthCheck.function_scoped_fixture]
)
@given(
    clk_seq=st.lists(st.booleans(), min_size=10, max_size=100),
    rst_n_seq=st.lists(st.booleans(), min_size=10, max_size=100),
    count_seq=st.just([0]*100)  # Dummy output
)
def test_counter(
clk_seq, rst_n_seq, count_seq
):
    # Convert boolean to 0/1 for clk
    clk_seq = [1 if x else 0 for x in clk_seq]
    # Convert boolean to 0/1 for rst_n
    rst_n_seq = [1 if x else 0 for x in rst_n_seq]

    # Ensure all sequences have same length
    num_cycles = min(len(seq) for seq in [clk_seq, rst_n_seq, count_seq])
    clk_seq = clk_seq[:num_cycles]
    rst_n_seq = rst_n_seq[:num_cycles]
    count_seq = count_seq[:num_cycles]

    # Generate testbench with sequences
    drive_counter(clk_seq, rst_n_seq, count_seq)

if __name__ == '__main__':
    pytest.main([__file__])

Unless we specify specific properties the framework knows nothing about what data should go into the module, but this file should provide a framework for further description, for example we have useful limits on the number of tests (max_examples), the number of inputs (see the @given directive). Let’s change test_counter so that it makes some sense:

@settings(
    max_examples=100,
    deadline=None,
    suppress_health_check=[HealthCheck.too_slow, HealthCheck.function_scoped_fixture]
)
@given(
    rst_n_seq=st.lists(st.integers(0, 1), min_size=10)
)
def test_counter( rst_n_seq ):
    num_cycles = len(rst_n_seq)

    clk_seq = [(i % 2) for i in range(num_cycles)]

    count_seq = reference_counter(clk_seq, rst_n_seq)

    # Generate testbench with sequences
    drive_counter(clk_seq, rst_n_seq, count_seq)

I won’t give the reference_counter implementation here, it can be found in ref_model/ref_counter.py (potentially, you can reuse reference models from other languages if you write an adapter).

Back in the new implementation, we’ve clarified how clk should behave, since clock generators usually behave this way. This test will create 100 testbenches that succeed. The reader is invited to find the bug himself reference model or hardware design for the example/multiplier_pipe.v module (the model is in ref_model/ref_multiplier.py).

--- title: How the framework works --- graph LR; A[module.v] -->|Description of ports| B(core.py) B --> C(module_interface.py) B --> D(run_module.py) E[You] -->|Your edits| D C --> F(Ready-made testbench) D --> F

Deeper and deeper

I asked the neural network to generate some block with registers, now it can be found in example/csr.v. The diagram below is supposed to represent the transition between FSM states.

--- title: The FSM scheme of the hardware unit --- stateDiagram-v2 [*] --> IDLE IDLE --> PROCESS: START_BIT PROCESS --> COMPLETE: counter == config PROCESS --> ERROR: counter == 0xFF COMPLETE --> IDLE: !START_BIT ERROR --> IDLE: RESET_BIT

Of course, I was too lazy to write a reference model, so I limited myself to the input data. This time I decided to split my test into a set of strategies, so that I could put them together later.

import os
import pytest
import hypothesis.strategies as st
from hypothesis import given, settings, HealthCheck
from csr_interface import drive_csr

# Constants from the Verilog module
CTRL_ADDR = 0x00
STATUS_ADDR = 0x04
CONFIG_ADDR = 0x08
DATA_IN_ADDR = 0x0C
DATA_OUT_ADDR = 0x10
VERSION_ADDR = 0xFC

START_BIT = 0
RESET_BIT = 1
IE_BIT = 2
DONE_BIT = 0
BUSY_BIT = 1
ERR_BIT = 2

@st.composite
def base_signals(draw, num_cycles):
    """Basic signals: clock and reset with 5% reset probability"""
    # Generate clock signal (deterministic)
    clk_seq = [i % 2 for i in range(num_cycles)]

    # Generate reset signal with:
    # - First 3 cycles: guaranteed reset (0)
    # - Subsequent cycles: 2% probability of reset (0), 98% normal (1)
    reset_n_seq = [0] * min(num_cycles, 3)  # Handle cases with <3 cycles

    # For remaining cycles
    if num_cycles > 3:
        reset_tail = draw(
            st.lists(
                st.integers(min_value=0, max_value=99),
                min_size=num_cycles-3,
                max_size=num_cycles-3
            )
        )
        reset_n_seq += [0 if x < 2 else 1 for x in reset_tail]

    return clk_seq, reset_n_seq

@st.composite
def config_strategy(draw, cycle):
    """Configuration recording strategy"""
    config_value = draw(st.one_of(
        st.integers(1, 10),     # Short processing
        st.integers(200, 255)   # Long processing
    ))
    return {
        'cycle': cycle,
        'addr': CONFIG_ADDR,
        'wdata': config_value,
        'wr_en': 1,
        'rd_en': 0
    }, config_value

@st.composite
def start_strategy(draw, cycle):
    """Processing launch strategy"""
    return {
        'cycle': cycle,
        'addr': CTRL_ADDR,
        'wdata': 1 << START_BIT,
        'wr_en': 1,
        'rd_en': 0
    }

@st.composite
def status_strategy(draw, cycle):
    """Status reading strategy"""
    return {
        'cycle': cycle,
        'addr': STATUS_ADDR,
        'wdata': 0,
        'wr_en': 0,
        'rd_en': 1
    }

@st.composite
def complete_strategy(draw, cycle, error_mode):
    """Processing completion strategy"""
    if error_mode:
        wdata = 1 << RESET_BIT
    else:
        wdata = 0

    return {
        'cycle': cycle,
        'addr': CTRL_ADDR,
        'wdata': wdata,
        'wr_en': 1,
        'rd_en': 0
    }

@st.composite
def random_operation(draw, cycle):
    """Accidental anti-sticking operation"""
    if draw(st.booleans()):

        return {
            'cycle': cycle,
            'addr': 0,
            'wdata': 0,
            'wr_en': 0,
            'rd_en': 0
        }
    else:
        # Read random register
        addr = draw(st.sampled_from([
            STATUS_ADDR, DATA_OUT_ADDR, VERSION_ADDR
        ]))
        return {
            'cycle': cycle,
            'addr': addr,
            'wdata': 0,
            'wr_en': 0,
            'rd_en': 1
        }

Here we just explain what the signals should be for sending values correctly, the idea is that we can write strategies for standard protocols like AXI or CHI and create a standard library from them.

Now it’s time for composition:

# Composite strategy
@st.composite
def fsm_sequence_strategy(draw):
    num_cycles = 100
    clk_seq, reset_n_seq = draw(base_signals(num_cycles))

    # A list to collect all transactions
    all_operations = []

    # 1. Configuration operation (after reset)
    config_cycle = 5
    config_op, config_value = draw(config_strategy(config_cycle))
    all_operations.append(config_op)

    # 2. Operation to start processing
    start_cycle = config_cycle + 2
    start_op = draw(start_strategy(start_cycle))
    all_operations.append(start_op)

    # 3. Defining the type of test
    error_mode = config_value > 200

    # 4. Reading the status
    status_cycle = start_cycle + 2
    status_op = draw(status_strategy(status_cycle))
    all_operations.append(status_op)

    # 5. Completion operation (if we have time)
    if not error_mode and (start_cycle + config_value + 5) < num_cycles:
        complete_cycle = start_cycle + config_value + 5
        complete_op = draw(complete_strategy(complete_cycle, error_mode))
        all_operations.append(complete_op)

    # 6. Filling the remaining cycles
    for cycle in range(num_cycles):

        if any(op['cycle'] == cycle for op in all_operations):
            continue

        # Add a random operation with a 30% probability
        if draw(st.floats(0, 1)) < 0.3:
            rand_op = draw(random_operation(cycle))
            all_operations.append(rand_op)
        else:
            # Empty cycle
            all_operations.append({
                'cycle': cycle,
                'addr': 0,
                'wdata': 0,
                'wr_en': 0,
                'rd_en': 0
            })


    all_operations.sort(key=lambda x: x['cycle'])

    # Collecting signal sequences
    addr_seq = [0] * num_cycles
    wdata_seq = [0] * num_cycles
    wr_en_seq = [0] * num_cycles
    rd_en_seq = [0] * num_cycles

    for op in all_operations:
        cycle = op['cycle']
        if cycle < num_cycles:
            addr_seq[cycle] = op['addr']
            wdata_seq[cycle] = op['wdata']
            wr_en_seq[cycle] = op['wr_en']
            rd_en_seq[cycle] = op['rd_en']

    return {
        'clk_seq': clk_seq,
        'reset_n_seq': reset_n_seq,
        'addr_seq': addr_seq,
        'wdata_seq': wdata_seq,
        'wr_en_seq': wr_en_seq,
        'rd_en_seq': rd_en_seq,
        'num_cycles': num_cycles
    }

@settings(
    max_examples=20,
    deadline=None,
    suppress_health_check=[HealthCheck.too_slow, HealthCheck.data_too_large]
)
@given(data=fsm_sequence_strategy())
def test_csr_fsm(data):

    clk_seq = data['clk_seq']
    reset_n_seq = data['reset_n_seq']
    addr_seq = data['addr_seq']
    wdata_seq = data['wdata_seq']
    wr_en_seq = data['wr_en_seq']
    rd_en_seq = data['rd_en_seq']

    drive_csr(
        clk_seq=clk_seq,
        reset_n_seq=reset_n_seq,
        addr_seq=addr_seq,
        wdata_seq=wdata_seq,
        wr_en_seq=wr_en_seq,
        rd_en_seq=rd_en_seq,
        rdata_seq=None,
        ready_seq=None
    )

if __name__ == '__main__':
    pytest.main([__file__])

Although we generated only 20 tests, we were able to click through the block states by composing a special strategy to do so.

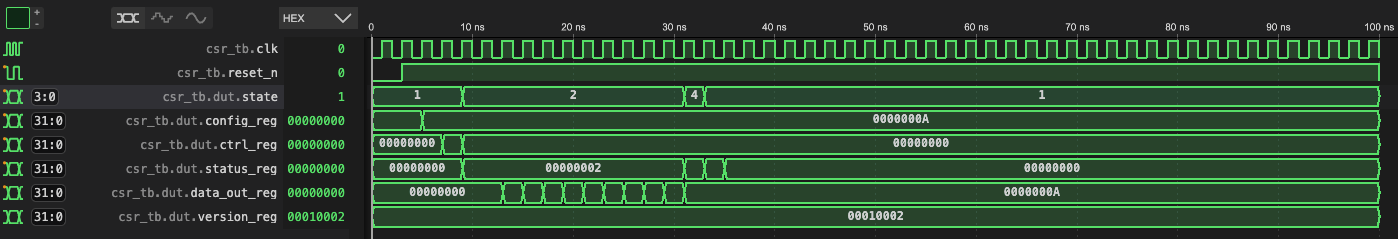

Example of a test

Points of development

What can be provided to the end user:

The existing implementation could be better if:

Afterword

Right now, svapy cannot be used as a replacement for existing industrial verification methods, however, assuming the framework results can be embedded into the UVM methodology, svapy could greatly reduce functional coverage time.
